How to Build Masonry Walls: A Step-by-Step Guide

0
3
Masonry Wall

Building masonry walls is a rewarding project that adds value, durability, and character to your property. Whether you’re constructing a garden wall, creating a privacy barrier, or adding an architectural feature to your landscape, masonry walls stand the test of time when properly constructed. This comprehensive guide walks you through the entire process, from planning and preparation to the final touches that ensure your wall will last for generations.

What Is a Masonry Wall?

Masonry walls are structures built from individual units of materials like brick, stone, or concrete blocks, bound together with mortar. Unlike wood or metal constructions, masonry walls offer exceptional durability, fire resistance, and thermal mass that helps regulate temperature.

They require minimal maintenance while providing structural integrity that can last for decades or even centuries when properly constructed.

Which Masonry Wall Types That Are Popularly Known?

It can be challenging to find clear information about different masonry wall types. But yes, there are several well-known kinds used in construction today. These are some popular types of masonry walls:

  • Brick walls – Classic appearance with excellent durability
  • Stone walls – Natural aesthetic with superior weather resistance
  • Concrete block walls – Cost-effective with great structural strength
  • Mixed material walls – Combining different masonry units for unique designs
  • Veneer walls – Decorative facing over structural backing

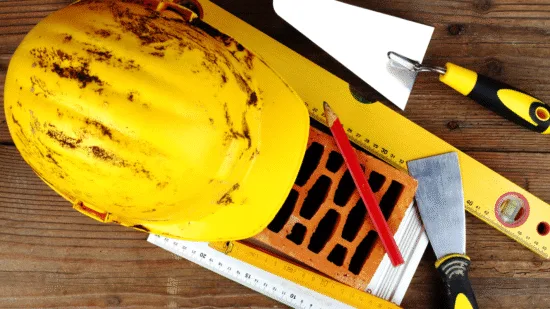

Which Masonry Tools Are Needed for Better Results?

Having the right tools is essential for successful masonry work. Quality tools not only make the job easier but also significantly improve the precision and appearance of your finished wall. Investing in proper equipment will save time and frustration throughout your project.

Essential Masonry Tools

  • Trowel – For applying and shaping mortar (pointed and flat varieties)
  • Level – 2′ and 4′ levels to ensure straight, plumb walls
  • Mason’s line and line blocks – For maintaining straight courses
  • Tape measure – For accurate measurements and spacing
  • Hammer and chisel – For cutting and shaping masonry units
  • Jointer – For finishing and shaping mortar joints
  • Masonry saw or brick set – For precise cutting of units
  • Wheelbarrow – For mixing mortar and transporting materials
  • Mixing hoe – For thoroughly combining mortar ingredients
  • Safety equipment – Gloves, eye protection, dust mask, and knee pads

How to Build a Masonry Wall

Building a masonry wall involves a systematic process that begins with thorough planning and preparation. Following these steps in sequence will help ensure your wall is structurally sound, visually appealing, and built to last. Each phase builds upon the previous one, making careful attention to detail essential throughout the entire project.

Materials Needed for Masonry Work

Selecting the right materials is crucial for building a durable, attractive masonry wall. The quality of your materials directly impacts both the appearance and longevity of your finished project. Understanding material options helps you make informed choices based on your specific needs and budget.

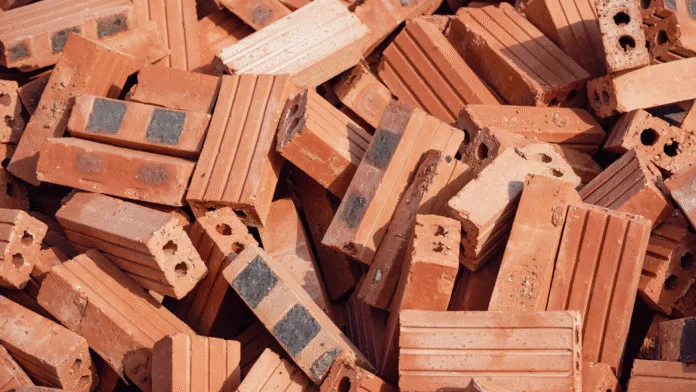

Primary Masonry Materials

  • Clay Bricks : Classic red or brown bricks made from natural clay, offering durability, a traditional look, and good insulation.
  • Concrete Blocks : Large, gray blocks made of cement, sand, and gravel; known for strength, affordability, and fast construction.
  • Natural Stone : Cut stone like granite, limestone, or sandstone, prized for unique textures, long-lasting beauty, and high cost.
  • Manufactured Stone : Man-made stone veneers that mimic real stone, providing a lightweight, cost-effective option with easy installation.
  • Structural Clay Tile : Hollow clay units used for walls or partitions, offering fire resistance, reduced weight, and good sound insulation.

Mortar and Bonding Materials

The mortar you choose is just as important as the masonry units themselves. Different applications require specific mortar types to ensure proper bonding and durability.

  • Type N mortar – General purpose, medium strength (1:1:6 ratio of cement:lime:sand)
  • Type S mortar – Stronger mix for below-grade applications (1:½:4½ ratio)
  • Type M mortar – High-strength for heavy loads and foundations (1:¼:3 ratio)
  • Type O mortar – Low strength for interior and repointing work (1:2:9 ratio)
  • Surface bonding cement – For dry-stack or reinforcement applications

Additional Materials

Beyond the primary masonry units and mortar, several supplementary materials are essential for proper wall construction.

  • Reinforcement materials – Rebar, wire mesh, or ladder reinforcement
  • Drainage materials – Gravel, drainage pipe, and filter fabric
  • Expansion joints – Allows for thermal expansion and contraction
  • Waterproofing materials – Sealers, flashing, and moisture barriers
  • Concrete for footings – Typically 3000-4000 PSI concrete mix

Preparing the Project Site for Masonry Walls

Proper site preparation creates the foundation for a successful masonry wall. Taking time to prepare the area thoroughly will prevent future problems with settling, cracking, or leaning.

  • Clear the area – Remove vegetation, debris, and topsoil from the wall location
  • Mark the wall location – Use stakes and mason’s line to outline the wall’s position
  • Dig the trench – Create a trench at least 6″ wider than the wall and below the frost line
  • Level the base – Ensure the bottom of the trench is level across its entire length
  • Add drainage material – Place 4-6″ of gravel in the trench and compact thoroughly
  • Install drainage pipe – For retaining walls, add perforated pipe wrapped in filter fabric
  • Build forms for footing – Create wooden forms for concrete foundation if needed

Preparing the Mortar Mix

Properly mixed mortar is essential for strong, durable masonry walls. The consistency and preparation of your mortar significantly impact both the construction process and the finished wall’s integrity.

Mortar Mixing Steps

Follow these steps to achieve the ideal mortar consistency for your masonry project.

  • Gather materials – Pre-mixed mortar or separate components (cement, lime, sand)
  • Measure accurately – Use consistent measurement tools for proper ratios
  • Mix dry ingredients first – Thoroughly combine cement, lime, and sand if using separate components
  • Add water gradually – Start with less water than you think you’ll need
  • Mix thoroughly – Continue mixing until achieving a smooth, consistent texture
  • Test consistency – Mortar should hold its shape when formed but spread easily with a trowel
  • Let mortar slake – Allow mixed mortar to rest for 5-10 minutes, then remix briefly
  • Use within 2 hours – Discard mortar that becomes too stiff to use

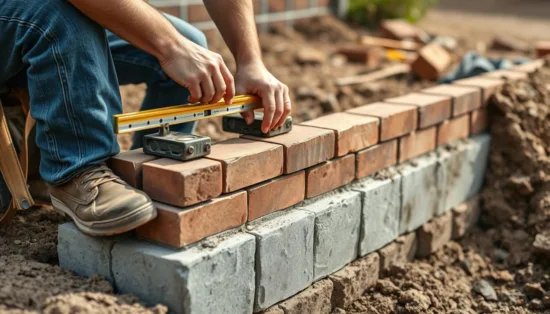

Setting the First Course of Blocks

The first course of masonry units is the most critical row in your entire wall. Taking extra time to ensure this foundation row is perfectly level and properly aligned will make all subsequent courses easier to build and result in a stronger, more attractive wall.

Step-by-Step First Course Installation

Follow these detailed steps to establish a solid foundation for your masonry wall.

  • Pour concrete footing if required – Allow to cure completely before proceeding
  • Snap chalk line – Mark the exact position of the first course on the foundation
  • Lay out dry run – Place masonry units without mortar to check spacing and cuts
  • Start at corners – Begin actual installation at corners or ends of the wall
  • Apply mortar bed – Spread 1″ thick mortar along foundation for first few units
  • Set corner units – Place and level corner units first as reference points
  • Stretch mason’s line – Run string between corners to guide alignment
  • Place remaining units – Work from corners toward center, checking level constantly
  • Check alignment – Verify units are level, plumb, and properly spaced
  • Make adjustments – Tap units with handle of trowel to adjust position
  • Allow partial setting – Let first course set slightly before building upward

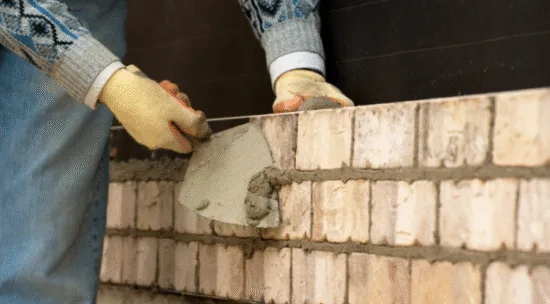

Building Up the Wall Layers

Once your first course is properly set, you can begin building upward, adding subsequent courses to reach your desired wall height. Maintaining consistent technique throughout this process ensures structural integrity and professional appearance.

Applying Surface Bonding Cement

Surface bonding cement provides additional strength, water resistance, and a finished appearance to masonry walls. This specialized material can be applied to both new construction and existing walls to enhance durability and aesthetics.

Application Process

Follow these steps to properly apply surface bonding cement to your masonry wall.

  • Wait for proper curing – Allow new masonry to cure for at least 7 days
  • Clean the surface – Remove dirt, dust, and loose material
  • Dampen the wall – Lightly mist with water but avoid saturation
  • Mix according to manufacturer’s instructions – Typically to a thick, creamy consistency
  • Apply first coat – Use a trowel to apply 1/8″ thick layer
  • Work in manageable sections – Typically 10-15 square feet at a time
  • Smooth the surface – Use a float or trowel for desired texture
  • Apply second coat if needed – Wait 24 hours between coats
  • Cure properly – Keep surface damp for 2-3 days by misting regularly
  • Protect from extreme temperatures – Cover if freezing or extreme heat expected

Final Touch for Long-Lasting Results

The finishing touches you apply to your masonry wall can significantly impact both its appearance and longevity. Taking time to properly finish and protect your wall will ensure it maintains its beauty and structural integrity for decades to come.

Finishing Mortar Joints

Properly finished mortar joints not only enhance the wall’s appearance but also improve weather resistance and structural integrity.

Cleaning and Sealing

Proper cleaning and sealing protect your masonry wall from staining, moisture damage, and premature aging. For truly exceptional results that enhance both appearance and durability, professional stone veneer in Calgary installations offer superior protection against Calgary’s harsh climate conditions while providing outstanding aesthetic appeal.

Ready to Build? Get Expert Masonry Construction Help

Building a masonry wall can be a fun DIY project, but some jobs really need an expert’s touch. Complicated or load-bearing walls, or projects using special techniques, often turn out stronger and last longer when done by skilled masons.

Knowing when a project is too big or tricky to handle on your own can save money, keep things safe, and make sure your wall stands the test of time. For these kinds of projects, working with professional masonry in Calgary can help you get great results without the hassle, because they can make sure your masonry walls are built to code, structurally sound, and made to last for years to come.
